Support of Excavation
Support of excavation for a 20-foot-deep foundation between an existing building and the Staten Island Railroad.
Client
Private
Project Status
Completed
Date
2024
Support of Excavation
Project Overview:

Support of excavation for a 20-foot-deep new foundation in Staten Island. The excavation sat directly against an existing building and near the Staten Island Railroad, so movement and vibration had to be controlled throughout.

Project Highlights:

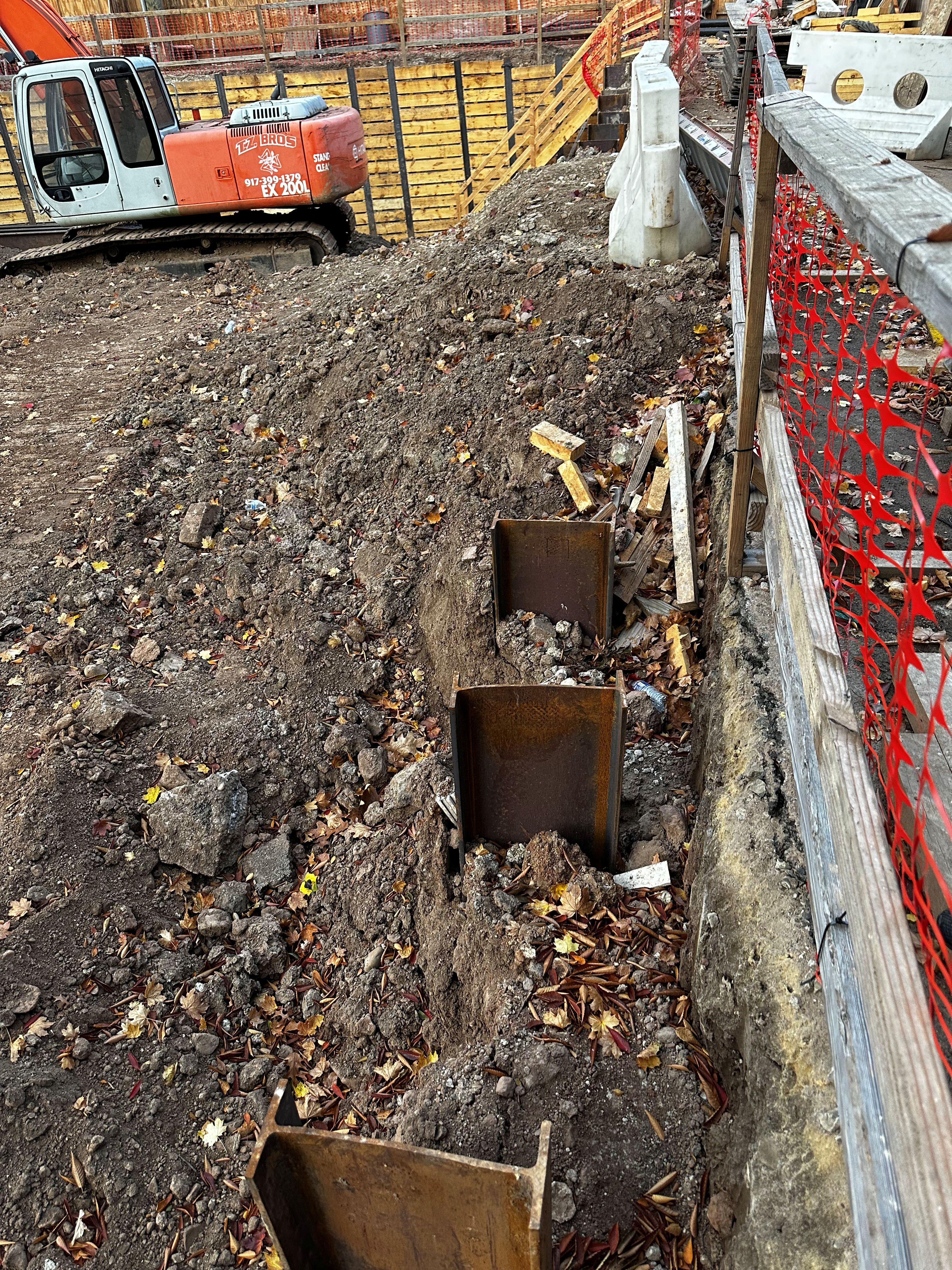

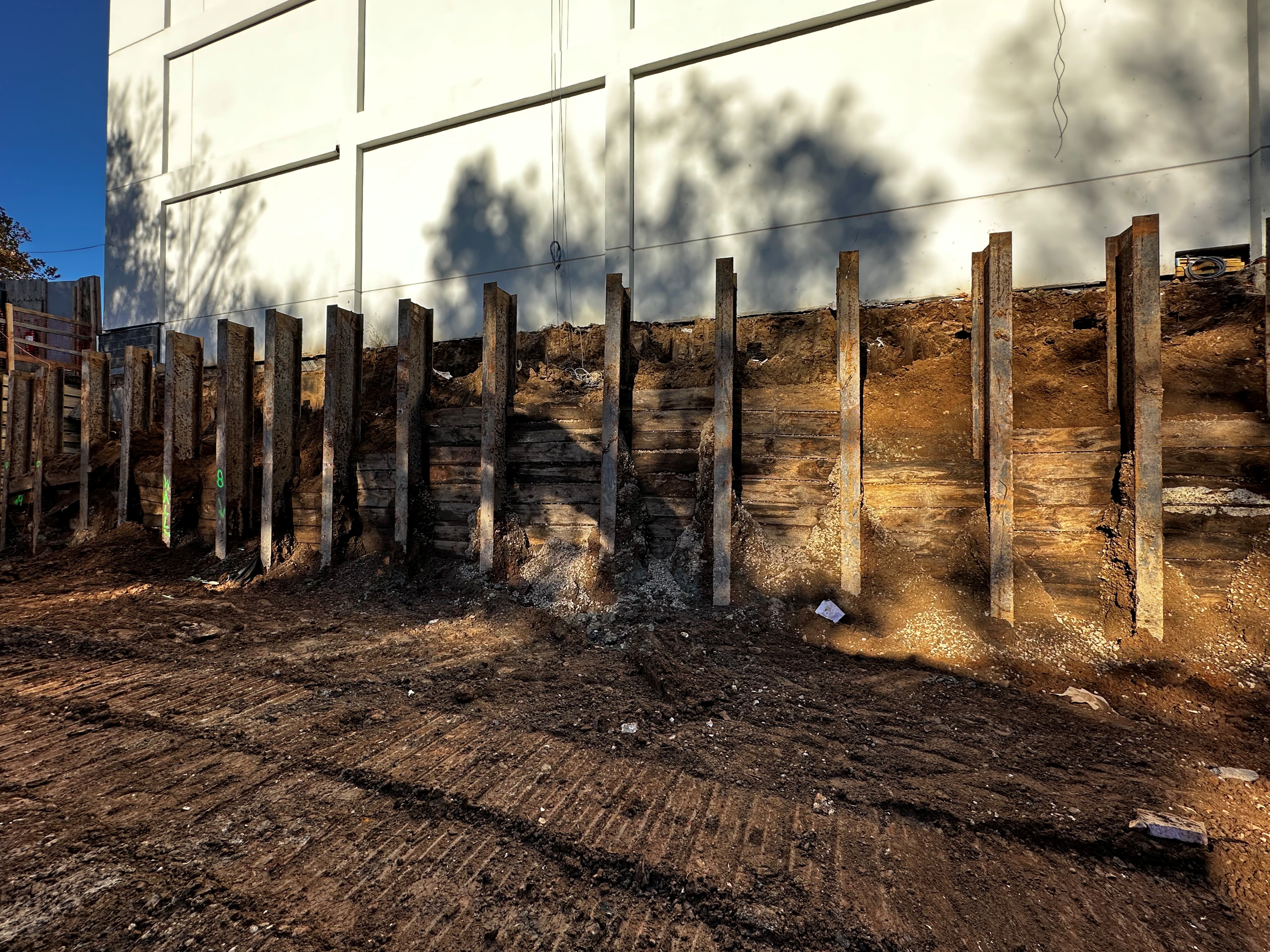

  • Drilled piles selected for low-vibration installation next to the existing building and rail line

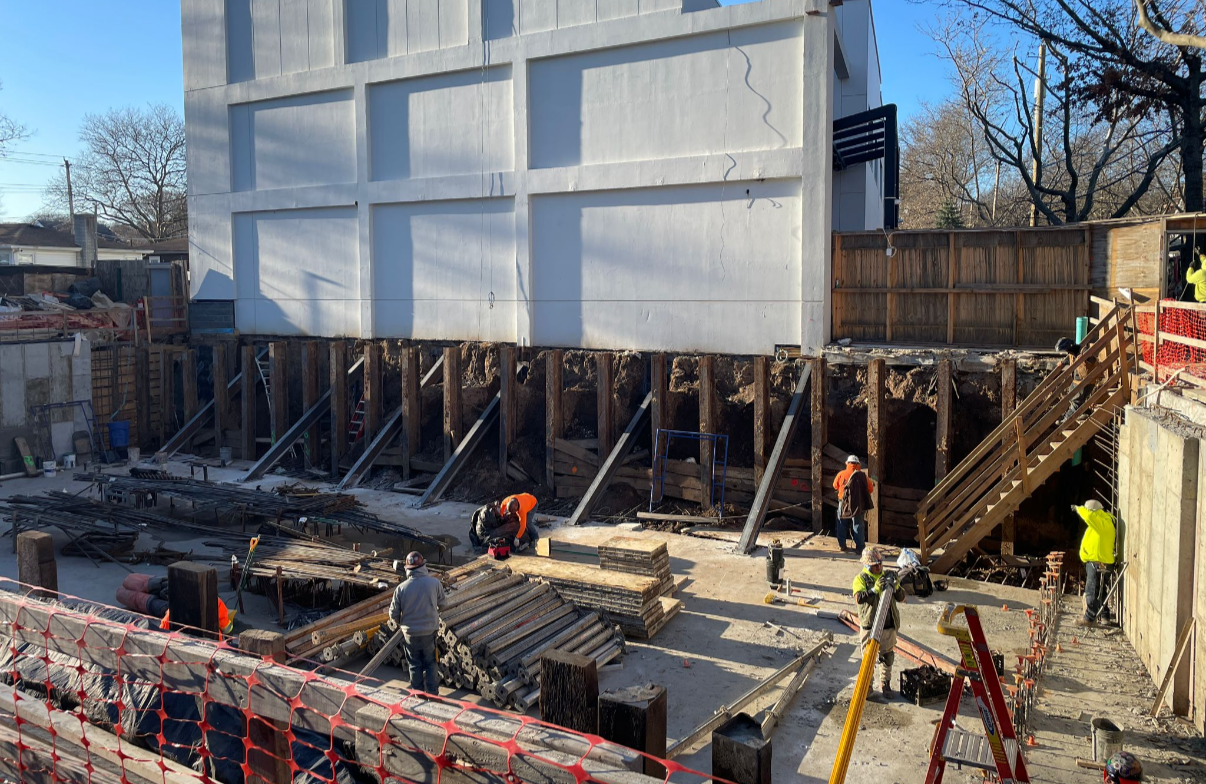

  • Bracing designed to tie into the permanent foundation, eliminating a separate temporary bracing system
  • MTA adjacency approval obtained with no impact to railroad operations
  • No measured settlement or movement of adjacent structures
Project Experience:

Driven piles were ruled out because of vibration risk to the adjacent building and the railroad. Drilled piles provided the required capacity with much lower vibration.

Tying the bracing into the permanent foundation removed a full temporary system from the sequence. That reduced the number of installation and removal stages near the rail line, each of which would have required its own MTA coordination.

Support of ExcavationSupport of Excavation
Project Outcome:

The excavation and foundation were completed with no settlement or movement of the existing building or MTA infrastructure.
